產品詳細：

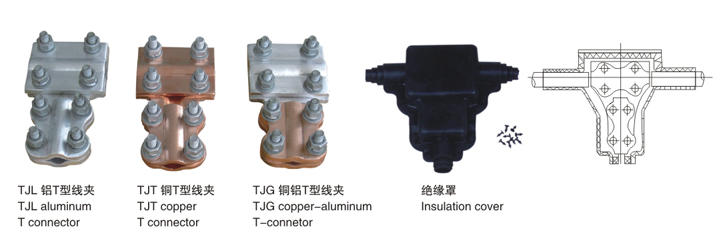

13.TJL、TJT、TJG系列T型線夾及絕緣罩TJL,TJT,TJG series T-connector and insulation cover

■ 用 途 Application

■ 絕緣罩性能特點 Insulation cover performance feature

TJT、TJT、TJG 系列T型線夾適用于10kV 架空絕緣電纜的分支

接續，也可適用于發電廠，變電所電氣設備與架空線母線的T型

連接。絕緣罩和T型線夾配套使用，起絕緣防護作用。

TJL,TJT,TJG series T-connector is suitable for the branch connectrion of 10kV aerial insulation cable.also used for the

T-shape connection with electric faciltities and eerial bus in

power plant and transrormer substation.insulation cover and

T-connector are used together.It action is insulatio protection. ◆ 工頻耐壓: ≥18kV保壓1分鐘不擊穿

◆ 絕緣電阻：＞1.0x1014Ω

◆ 環境溫度：-30℃~90℃

◆ 耐氣候性能：經人工氣候老化試驗1008小時后性能良好

◆ Withstand voltage: ≥18kV keep voltage one minute not breakdown

◆ Insulation resistance: ＞ 1.0x1014Ω

◆ Environment temperature: -30℃~90℃

◆ Weather proof performance:have good performanced after 1008 hours artifical climte aging test.

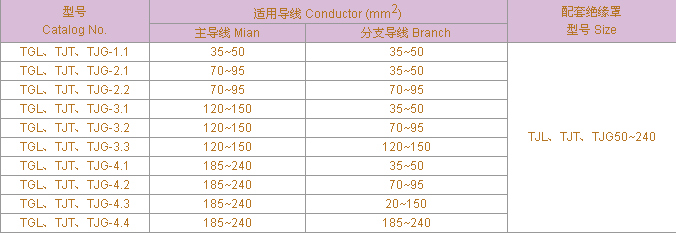

■ 規格及技術參數 Specification
