產品詳細：
設備線夾 Terminal connector

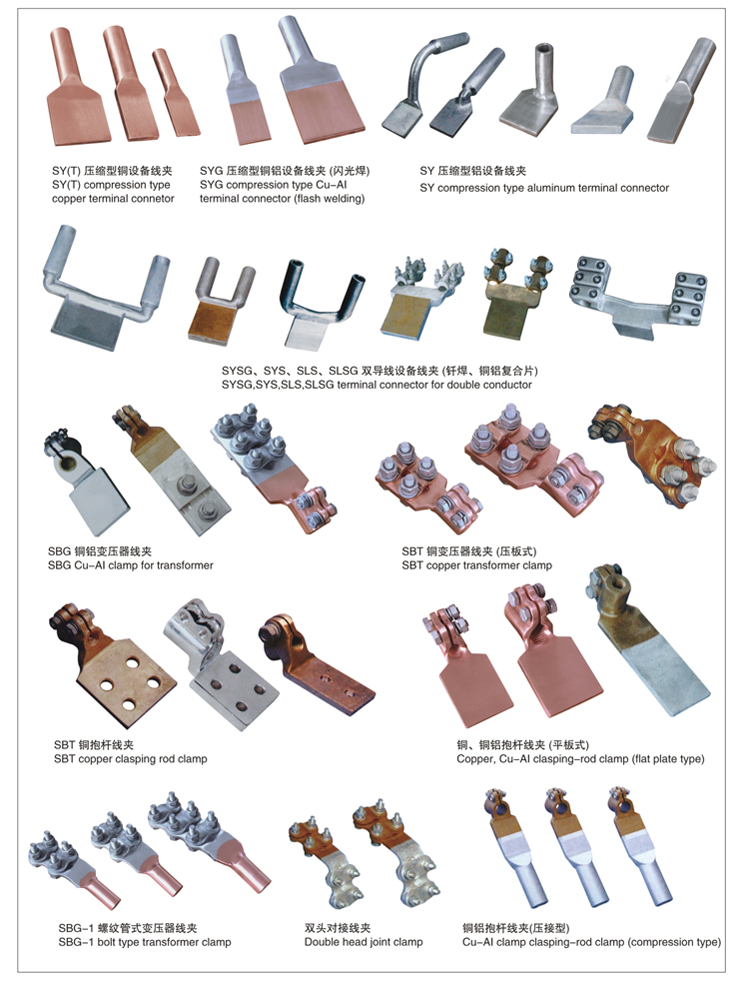

設備線夾主要用于變電所母線引下線與電氣設備（如變壓器、斷路器、隔離開關、穿墻套管等）的出線端子接續，因常用電氣設備的出線端子有銅質和鋁質兩類，而母線引出線分為鋁絞線或鋼芯鋁絞線，故設備線夾從材質上分為鋁設備線夾和銅鋁過渡設備線夾兩個系列。根據安裝方法和結構形式的不同，設備線夾分螺栓型、壓縮型兩種類型。每種型式的線夾又按引下線與安裝電氣設備端子所成角的不同分為0°、30°、90°種。

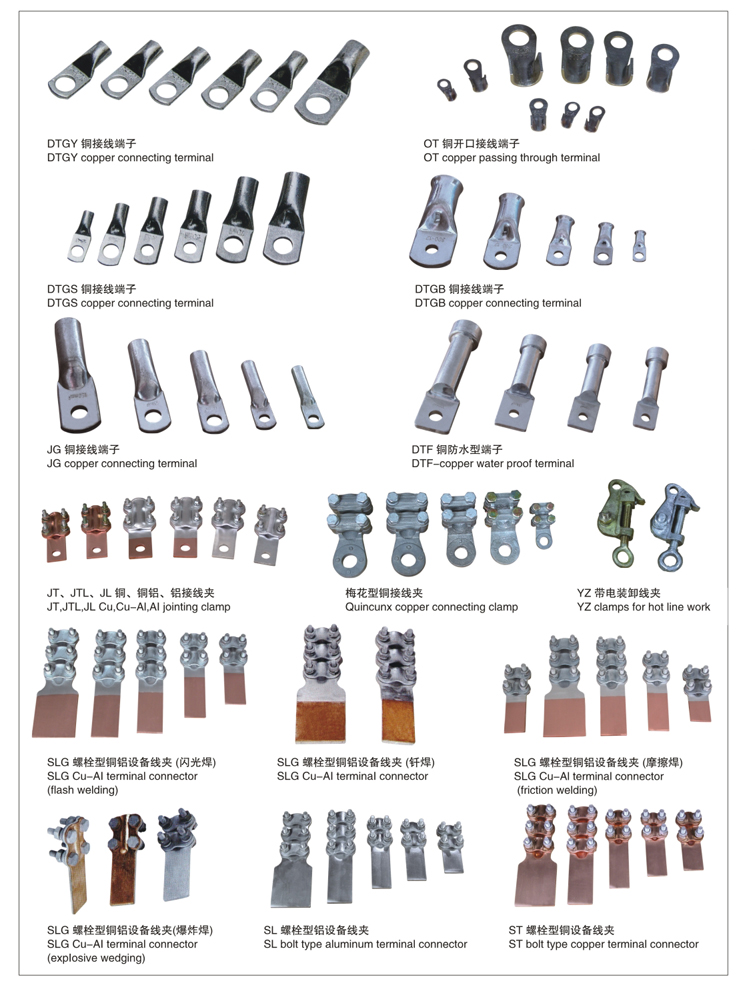

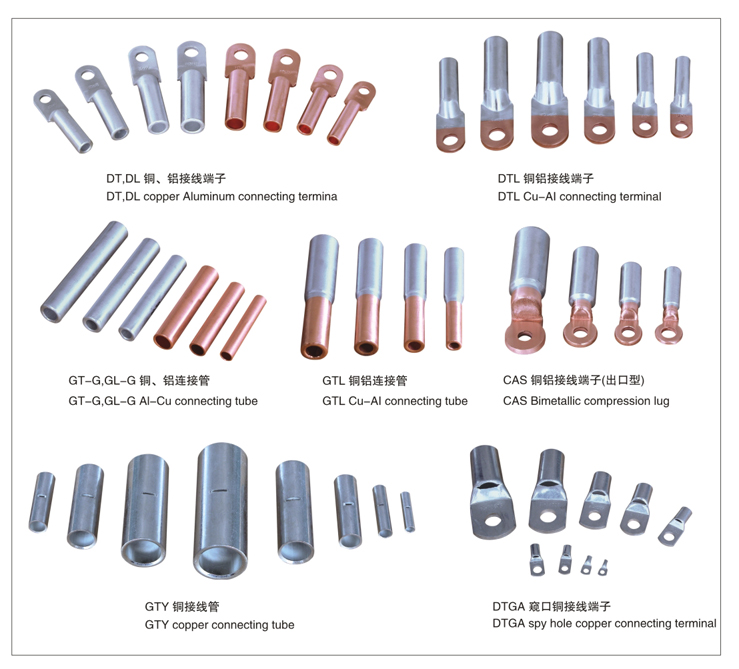

DTL系列銅鋁接線端子適用于配電裝置鋁芯電纜與電氣設備銅端的過渡連接；DL鋁端子用于鋁芯電纜與電氣設備的鋁端連接；DT銅端子用于銅芯電纜與電氣設備銅端連接。產品采用摩擦焊工藝制造，具有焊縫強度高，通電性能好，抗電化腐蝕，使用壽命長等特點。
Terminal connectors are used to connect tap conductor to power equipments(transformer,circuit breaker,disconnect switch.etc)or to wall bushing of substation.Aluminum connectors are also used to connect the tap conductor of T-connector.The connectors include compressive-type and bolted,both types have angle of 0°,30°and 90°with the direction of tap conductor.
DTL series Al-Cu connection terminal is suitable for transition joint of distribution device aluminum core cable and electric equipment.DL aluminum is used for aluminum terminal linking of aluminum core cable and electric equipment.DT copper terminal i
s used for copper terminal electric equipment.DT copper terminal is used copper terminal linking of copper core cable and electric equipment,The products adopt friction welding workmanship,It has advantage of good electric conductance,electrochemlcal corrosion resistance,long service life.

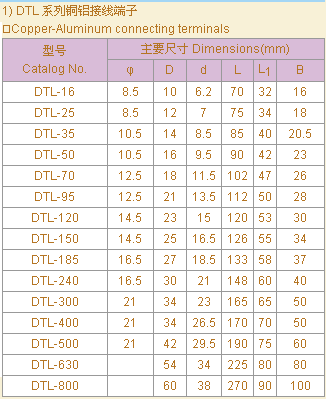

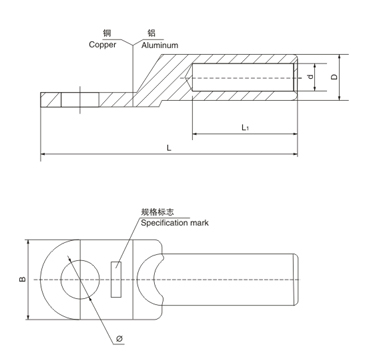

1、銅鋁接線端子Copper-Aluminum connecting terminals
